DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area

DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area
DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area
Βασικές πληροφορίες
Τόπος καταγωγής: Σαγκάη, Κίνα
Μάρκα: Dikai
Πιστοποίηση: CE, ISO
Ποσότητα παραγγελίας min: 1
Τιμή: $2,700-3,000
Καλύτερη τιμή Επικοινωνήστε
Δυναμικό: AC100-240V 50/60Hz Κεφαλή εκτύπωσης: 32mm, 300dpi
Περιοχή τυπωμένων υλών: Διαλείπουσα: 32*60mm, συνεχής: 32*100mm Συχνότητα εκτύπωσης: ≤300 φορές/λεπτό
Μέγιστο μήκος κορδέλας: 500μ. Πλάτος κορδέλας: 22mm ~ 33mm
Διασυνδέομαι: USB, RS232, δίκτυο Τροφοδοσία: AC100-240V 50/60Hz, 150W
Παροχή αέρα: 6bar/90psi (max), ξηρό, καθαρό Θερμοκρασία λειτουργίας: 0-40 ℃
Σχετική υγρασία: 10% ~ 95% (μη συμπύκνωση) Βάρος μονάδας εκτύπωσης: 8,5 κιλά
Βάρος κουτιού ελεγκτή: 2,0 κιλά Διαστάσεις μονάδας εκτύπωσης: 188*190*180mm
Διαστάσεις πλαισίου ελεγκτή: 210*180*155mm
Επισημαίνω:

AC100-240V 50/60Hz Thermal Transfer Overprinter

,

6bar/90psi Air Supply TTO Date Coding Machine

,

32x60mm/32x100mm Print Area Thermal Transfer Printer

DIKAI D03S 32Mm Tto Printer Thermal Transfer Overprinter Tto Date Coding Machine
Product Overview

The DIKAI D03S Thermal Transfer Printer was designed by our own R&D department after 4 years of development. This versatile machine combines intermittent and continuous printing modes, making it suitable for both horizontal and vertical packing machines.

Featuring a 300dpi printhead, the D03S can print barcodes, QR codes, best before dates, real-time information, graphics, pictures, logos and other variable data directly onto packaging and substrates. All size, position and content parameters can be fixed or adjusted via the intuitive user interface.

Key Features
  • Continuous & Intermittent printing modes
  • 32mm Kyocera Printhead with 300 DPI resolution
  • Prints real-time and variable date information
  • Cost-effective operation
  • User-friendly operation
DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 0 DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 1

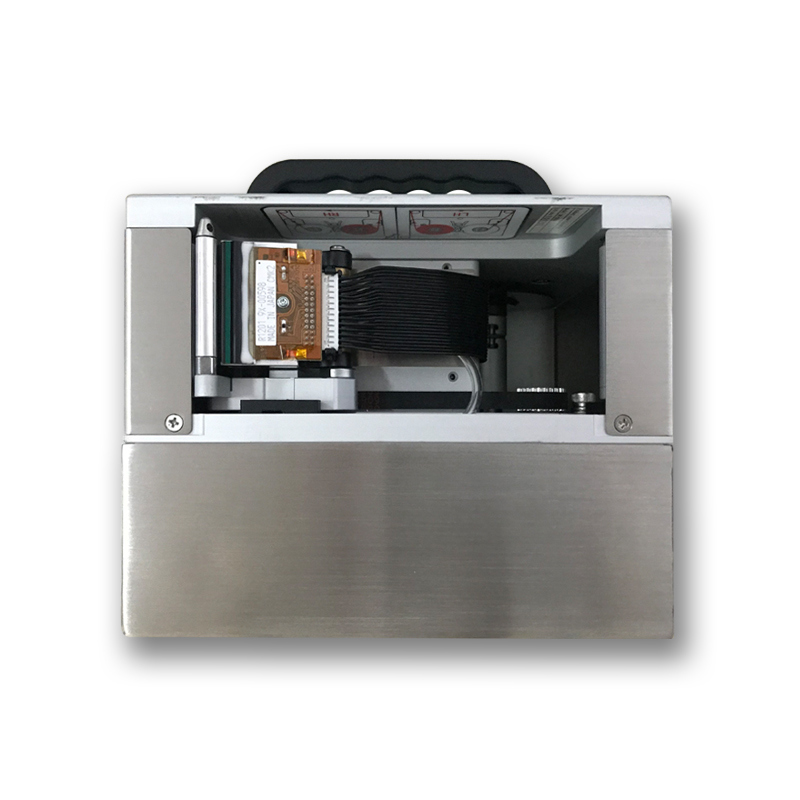

32mm Printhead
DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 2

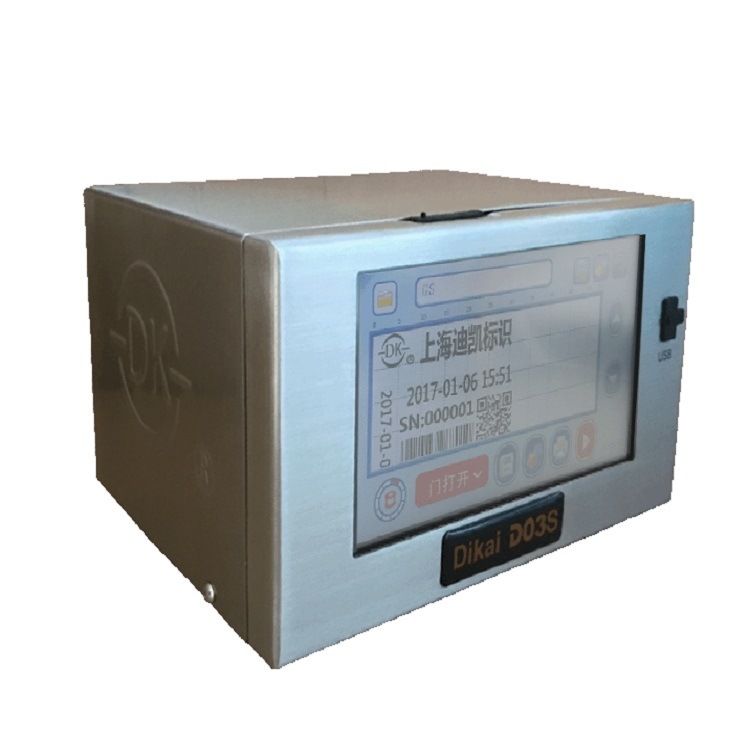

User Interface
DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 3
Technical Specifications
Print Head 32mm, Kyocera; 300DPI
Print Area Intermittent: 32mm*60mm
Continuous: 32mm*100mm
Ribbon Size 33mm*500m
Print Frequency Intermittent: up to 350PPM
Continuous: up to 40 meters/minute
Power AC110~220V, 50/60Hz, 150W
Operating Temperature 0-40℃
Relative Humidity 10%~95% (non-condensing)
Air Supply 6bar/90PSI (MAX) dry uncontaminated
Weight Print head: 8.5kg, Control box: 2.0kg
Dimensions (L*W*H) Print Unit: 188mm*190mm*180mm
Controller box: 210mm*180mm*155mm
Note: The prices shown on Alibaba are not final prices. Please consult us for customized solutions.
After Sales Service
DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 4
  • R&D technical support
  • Operation manual guidance
  • 24-hour professional online support
  • Video tutorial support
  • Possible onsite support
Packaging & Shipping
DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 5 DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 6 DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 7 DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area 8
Frequently Asked Questions
1. Why choose Dikai?

With 25 years of experience in developing, manufacturing and selling quality coding machines and consumables, we are committed to meeting every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked items, delivery can be completed within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

In countries with authorized distributors, we rely on our local partners for after-sales support. Dikai also provides online technical services and continuously updated video tutorials.
