DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
Βασικές πληροφορίες
Τόπος καταγωγής: Σαγκάη, Κίνα
Μάρκα: DIKAI
Πιστοποίηση: CE; ISO 9001
Ποσότητα παραγγελίας min: 1
Τιμή: $500-600
Καλύτερη τιμή Επικοινωνήστε
Περιοχή τυπωμένων υλών: 40 mm * 3 γραμμές Ταχύτητα εκτύπωσης: μέγιστο 150 εκτυπώσεις/λεπτό
Γραμμές τυπωμένων υλών: μέγιστο 3 γραμμές, 20 χαρακτήρες/γραμμή Μέγεθος πηγών: Ύψος 3,5 mm * 1,5, 2, 2,5 mm (Πλάτος)
Μέγεθος κυλίνδρου μελάνης: φ36*32, φ36*40mm (προτεινόμενο) Τροφοδοτικό: AC 220±10V, 50/60Hz, 130W, 2A
Θερμοκρασία εργασίας: 4-40℃, 10% - 95% υγρασία Δυναμικό: Ασφάλεια 130W,2A
Διαστάσεις: 205mm*162,5mm*124mm Βάρος: 2,2 κιλά
Περιεχόμενο τυπωμένων υλών: ΑΠΕ/Ημερομηνία λήξης ισχύος, αριθμός παρτίδας, σειριακός αριθμός κλπ. Μεγέθη τύπων: T-Type: 3,5mm*1,5T,2,0T,2,5T(W)
Ταχύτητα εκτύπωσης: μέγιστο 900 PPM, 60 μέτρα/λεπτό Βασικά στοιχεία: Πίνακας PC
Οδηγός τύπου: Ηλεκτρικός
Επισημαίνω:

Max 150 Prints/Minute Ink Roll Coder

,

Max 3 Lines Hot Ink Roll Coder

,

20 Characters/Line Intermittent Ink Roll Coder

DIKAI DK-802 Intermittent Ink Roll Coder
Product Overview

The DK-802 Intermittent Ink Roll Coder was developed by Dikai R&D as an upgraded version of the DK-801 model. This innovative coder combines the print head and control box into a single unit, significantly reducing costs while maintaining high performance.

Designed for integration with intermittent packaging machines, the DK-802 efficiently prints essential information including dates and lot numbers. With a maximum speed of 150 ppm, it meets the requirements of most intermittent packaging systems. Compared to intermittent hot stamp coders, the DK-802 offers substantial savings through its economical hot ink roll consumables.

Key Features
  • LED Display for clear operation monitoring
  • Consistent, stable printing performance
  • Reduced mechanical wear for longer service life
  • Low-cost consumables for economical operation
  • Compact design for space-efficient installation
  • Simple setup and user-friendly operation
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 0 DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 1
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 2

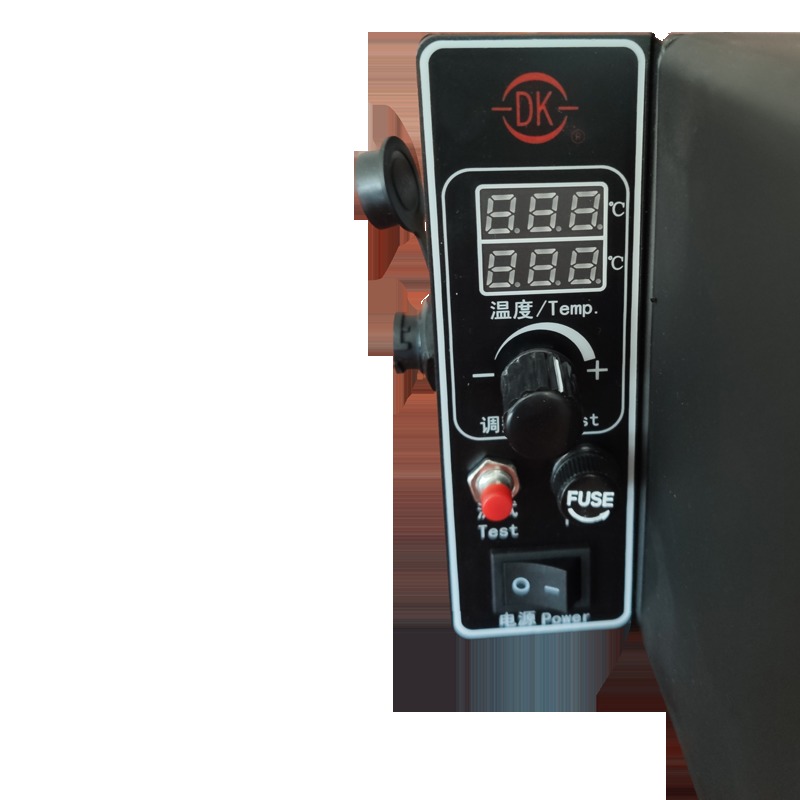

Right elevation view
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 3

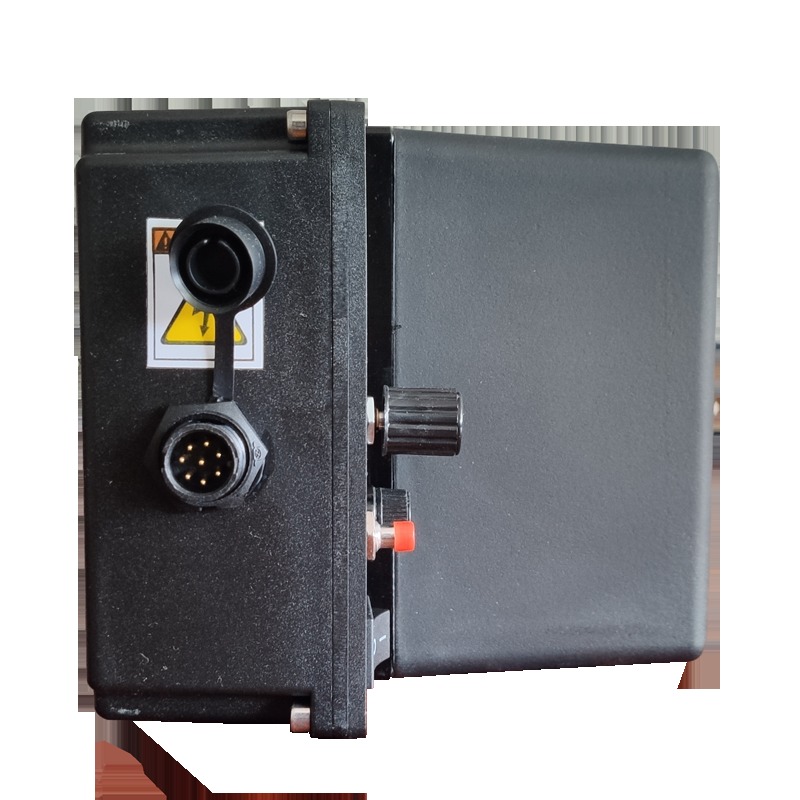

Left elevation view
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 4
Front elevation view
Technical Specifications
Print Area 40mm × 3 lines
Print Speed Maximum 150 prints/minute
Print Lines Maximum 3 lines, 20 characters/line
Font Size Height 3.5mm × Width 1.5mm, 2mm, or 2.5mm
Controller LED Display
Ink Roll Size φ36×32mm or φ36×40mm (recommended)
Power Supply AC 220±10V, 50/60Hz, 130W, 2A
Operating Conditions 4-40℃, 10%-95% humidity
Note: Prices shown are indicative only. Please contact us for customized solutions and accurate pricing.
Packaging & Shipping

The DK-802 is packaged in durable cartons suitable for sea, air, or express courier shipping.

DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 5 DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 6
After-Sales Support
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding 7

Our comprehensive technical support includes:

  • R&D technical assistance
  • Detailed operation manual guidance
  • 24-hour professional online support
  • Instructional video resources
  • Onsite support when required
Frequently Asked Questions
Why choose Dikai?

With 25 years of experience in coding machine development and manufacturing, we are committed to meeting diverse customer needs in coding and marking applications.

What is the standard lead time for Dikai products?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

What warranty does Dikai provide?

All products come with a standard 12-month warranty from the date of leaving our warehouse.

How does your after-sales service work?

In countries with authorized distributors, we work through our local partners. Additionally, we provide direct online technical support and continuously updated video resources.
